Breakout Board, Freenove sin toppmodell, for ESP32 / ESP32-S3 WROVER WROOM,
Terminal Block Shield HAT, 5V 3.3V Power Outputs, GPIO Status LED

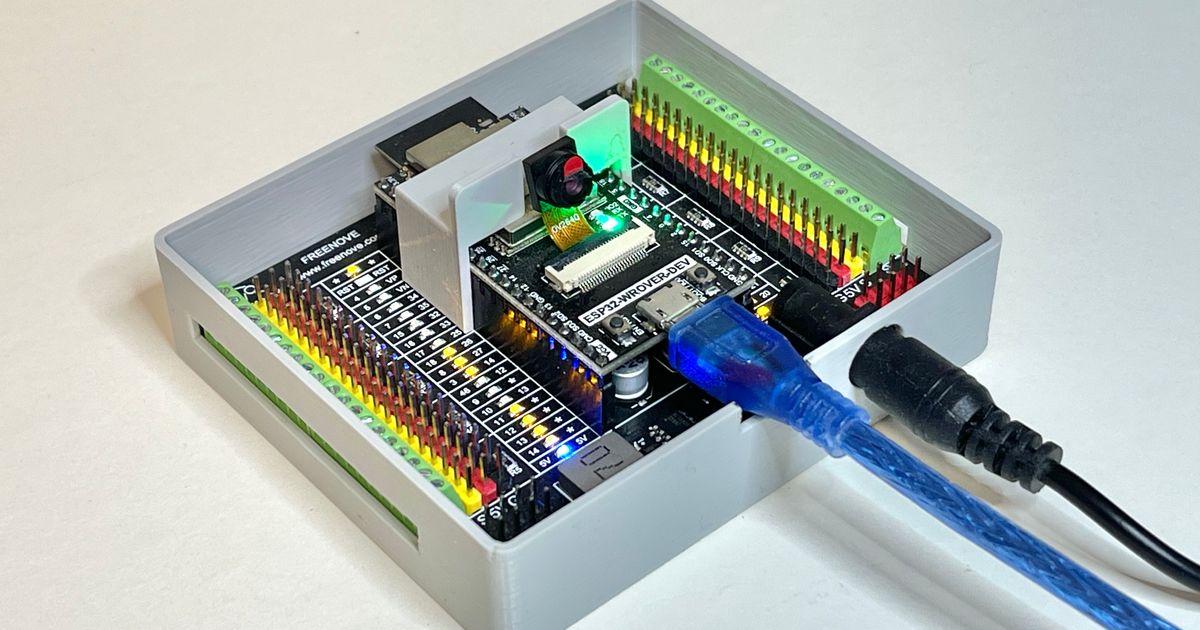

Bilde 2 viser ekstra utstyr en kan bruke på sånne.
This breakout board can help you wire and know the status of the GPIO.
Just plug Freenove ESP32 / ESP32-S3 board into this board to complete the installation.
We provide free technical support to help you with any questions and problems.
Compatible Models:
* Freenove ESP32-WROVER Board (FNK0060)
* Freenove ESP32-WROOM Board (FNK0090)
* Freenove ESP32-S3-WROOM Board (FNK0085)
* Freenove ESP32-S3-WROOM Board Lite (FNK0099)
Note: Not compatible with boards from other brands due to different pinout.
Main Features:
* Tutorial
Comes with tutorial to show how to use. (Download needed, no paper tutorial.)
You can download it before purchasing:
* GPIO status LED
LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level.
* Independent LED
The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.
* Power circuit
Provide multiple 5V and 3.3V power outputs. (5V output up to 3A with external power supply.)
* Terminal block and header
Connect to all pins of ESP32 / ESP32-S3, 2.54 mm (0.1 inch) pitch.
Package Includes:

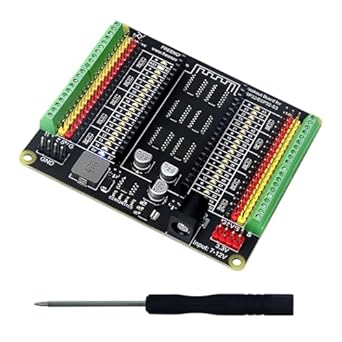

1 x Breakout board
1 x Slotted screwdriver
