100W LED Display DC-DC Boost Step up Voltage Converter 9A DC 3V-35V To DC 5V 9V 12V 24V Adjustable Volt Regulator Power Supply
Performance parameters:
1.Input Voltage: 3-35V DC (Note: When input voltage is less than 4V, onboard voltmeter will not work).
2.Input Current: 9A (max).
3.Output Voltage: 3.5-35V DC (this board is boosting board, output voltage>=Input voltage).
4.Output Current: 6A (max).
5.Output Power: 65W (when the input and output voltage greater than 20V up to 100W).
6.Conversion Efficiency: 96% (the highest).
7.Output Ripple: 40mV(TYP).
8.Onboard Voltmeter Range: 4-40V .
9.Error: +/-0.1V.
The module has high power output and efficiency (up to 96%).
The output can be up to 65W (and can further reach 100W when enhance heat-transfer).
Onboard we have a voltmeter to show clearly the input / output voltage
(we can select to show input/output voltage by pressing on the button onboard).

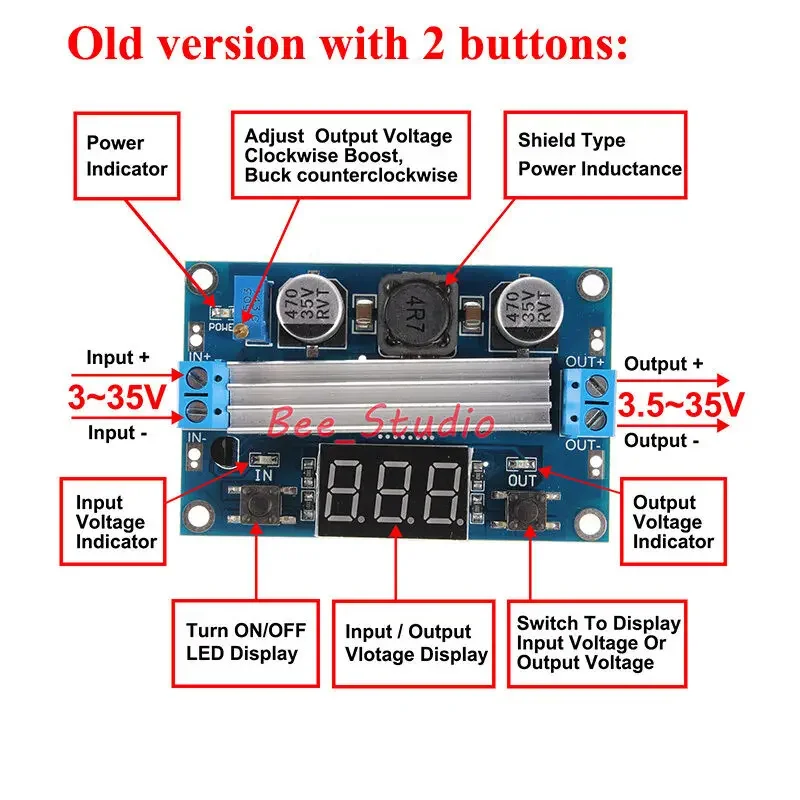

When the «IN» LED lights on, the voltmeter displays input voltage;
When the «OUT» LED lights on, the voltmeter displays output voltage.

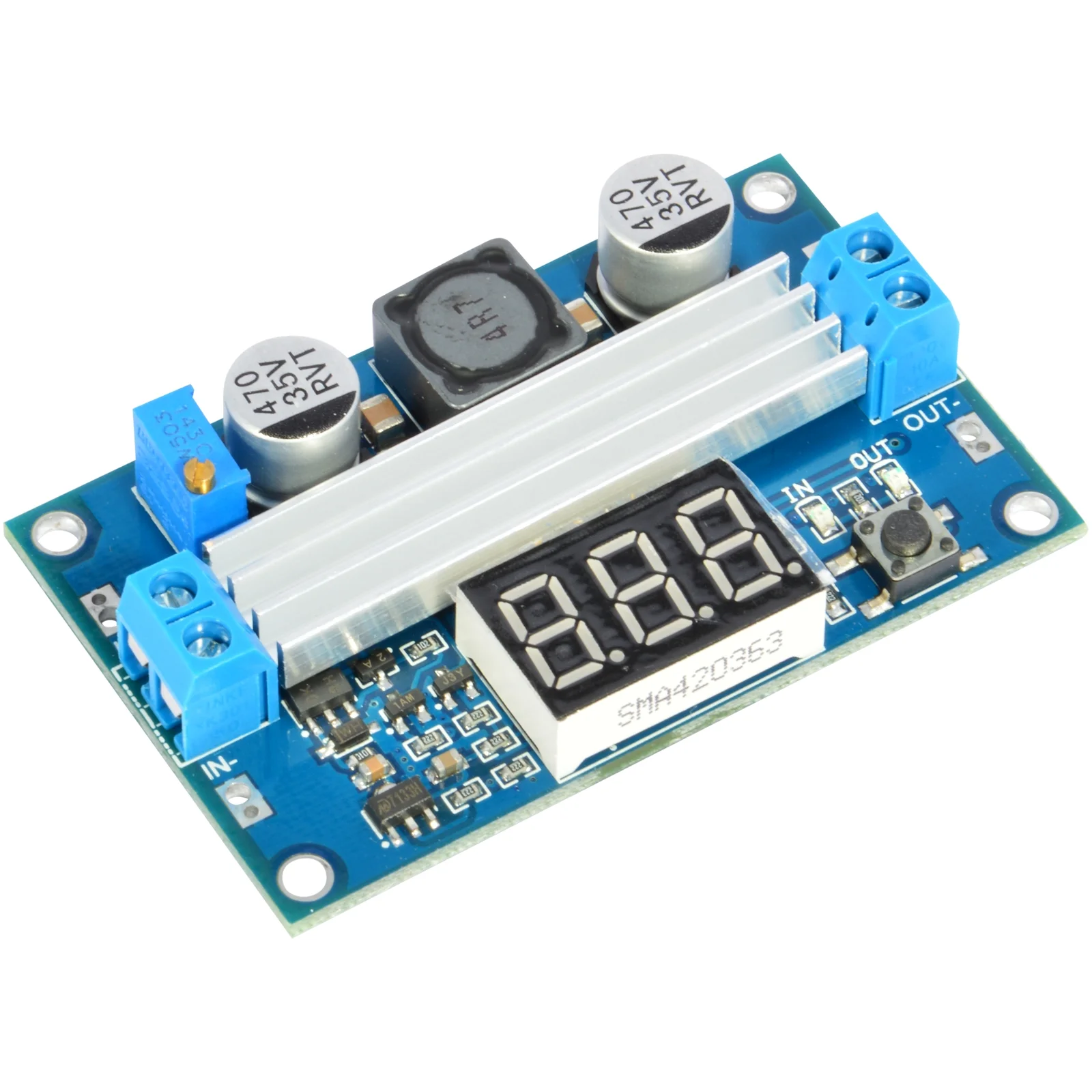

We can also turn off the voltmeter LED by removing the jumper cap at «P2 (please refer to below image)».
We can easily adjust voltage by the potentiometer onboard and the voltmeter onboard.
We won’t even need a multi-meter when adjusting. Very convenient!!!
Note 1: No reverse connection protection, please pay attention to see the positive and negative input terminal.
Note 2: The power module useage requires basic electronic circuit, improper use can damage.
IN+: Input Positive
IN-: Input Negative
OUT+: Output Positive
OUT-: Output Negative
This product adopts boost IC American imported and high power MOS tube,
output large power, high efficiency (96%), wide working voltage, the output power reaches 65W,
when the input and output voltage is above 20V, it can be achieved when the 100W output power.
